Sunday 13 December 2015

Christmas Lights with Raspberry Pi and GPIOZERO

We were in Wilco yesterday and spotted some battery powered LED xmas lights for the bargain price of £2.50. They seemed ideal for a bit of festive hacking

There were a few types available and I picked up 3 different ones: warm white LEDs on a flexible but fairly rigid wire, some brighter white LEDs encapsulated in a snowflake housing and some traditional multi-colour LEDs.

The strings of LEDs come attached to  two AA cells in a neat enclosure with an on/off switch. I snipped the wires fitted jumper wire housings to the end of each so I could plug them straight onto the GPIO header. As the LEDs run on 3v and I was intending to drive them using an 'expendable' model B, I decided not to bother with a series resistor.

I kept the batteries and the holders - these are bound to be useful for other projects (similar boxes can cost almost as much as the whole LED set).

Then I knocked up a quick Python program to run a mixed illuminate sequence for each of the lights.

from gpiozero import PWMLED
from time import sleep
import random
import threading

white = PWMLED(23)
snowflakes = PWMLED(18)
colours = PWMLED(25)

LIGHTS = [white,snowflakes,colours]

def gentle(lights):
    for x in range(1,100):
        lights.value = x/100

def randomblink(lights):

def sequence(lights):
    while True:

for i in LIGHTS:
    t = threading.Thread(target=sequence, args=(i,))

I then added a line to the /etc/rc.local file on the Pi so that the Python code runs automatically at startup.

Our Christmas tree was already quite covered with decorations so I decided to use these new lights on our spiky cactus!

Friday 11 December 2015

BOM for sub-£15 Raspberry Pi robot

A few people on Twitter asked for a BOM for my CodeClub sub-£15 robot kit. So here it is:

Chassis, wheels, motors and battery pack - £6.57

L9110S DC motor driver board - £1.72

Power bank - £2.67

HC-SR04 ultrasonic distance sensor - £0.99

I already have enough Pis, cases, breadboards and leads but for completeness if you were starting from nothing:

mini breadboard - 5 for £2.09
M-F jumper leads - £0.89
F-F jumper leads - £1.05

For the Pi itself, any model will do. I'm planning on using our original model Bs but if you were buying just for this project I'd go for model A+s or o Pi Zero.

In many cases you can get the components even cheaper (per unit) if you're buying larger quantities.

The only other thing you'll need is AA cells to power the motors and (optionally) a wifi dongle if you want to remotely control the robot.

In oder to fit everything onto the chassis shown above I had to drill some extra holes, mainly to accommodate the Pi in its PiBow case and allow the power bank to be slung underneath.  Although this worked fine, I wanted to make things simpler so I've been developing a 3D-printed chassis that has slots for the main elements and also allows the Pi (the heaviest part) to sit more towards the centre.

My plan is that over the holidays I'll finish off some of the activity plans for building this in CodeClub next term and share them online.

Tuesday 1 December 2015

Raspberry Pi Advent Calendar with SenseHAT

We missed out on a Lego Advent calendar this year so I decided to code up one for the Pi and the SenseHat.

The top 6 rows of the LED matrix are used to show the days on the month, each one being represented by 2 LEDs . Every day a new pair of LEDs illuminates and you can then select them using the joystick to navigate (your cursor is a pair of bright red LEDs). Pressing the joystick as a button will then display the day number followed by a Christmas image or animation created by my son Ozzy.

To make it funky, each day the grid redraws itself with different coloured LEDs in each position.

Everything you need is in this Github repo. Clone it and then run

Because the images are just 8x8 bit, they can take a little bit of imagination to work out (the Dec 1st is a snowball fight, before you ask!). You can, of course use your own content for each day. The static pictures should go in the pngs folder: name them decx.png, where x is the day. Animations should be added as a list of frames to  (follow the format of the existing ones).

You can use my 8x8grid drawing program to create your images and animations.

I wrote this in a bit of a rush so let me know if you spot any bugs surprise features!

Friday 27 November 2015

Pi Zero soldering

Well, yesterday was certainly exciting! The launch of Pi Zero was an amazing, fun and rewarding day. I'd tried to warn as many people as I could that they should get down to the shops early or - even better - reserve a copy of The MagPi in advance.

Quite a few of my Y5-6 CodeClub listened and demanded politely asked that their parents get them a copy on their way to work. One boy was amusingly concerned at lunchtime when I told him that some shops had already sold out!

I was also pleased to see that the work we've been doing has got them thinking along the right lines: the first thing they asked when I showed them the Pi Zero was 'how do we connect things to those funny GPIO pins?" I showed them the Pi Zero I had in the Zero Bot and the female header I'd used on that.

When I explained that all you had to do was solder on a header, those who made the DIY Gamer kits last year seemed fairly relaxed. Some of the new clubbers, especially those who hadn't done any soldering before, looked less convinced. Even after showing them the excellent page of instructions in the MagPi, a couple said that it looked really complicated.

So I decided to put together a short video to cover the procedure.  I thought it came out quite well and so I thought I'd share it more widely.

Monday 2 November 2015

Hallowe'en Pis

This year we ended up with three Raspberry Pis powering or controlling our Trick or Treater greeters (scarers).

Spooky Spider

A cheap spider decoration, hollowed out and enhanced with an A+ and a motion sensor that activated  evil red eyes.

The skinny power bank powered the Pi happily for over 4 hours.

The styrofoam body of the spider made it easy to hollow out a cavity for the A+


import RPi.GPIO as GPIO
import time


# Setup the pins we'll use

print "PIR Alarm active (CTRL-C to exit)"

Current_State  = 0
Previous_State = 0


    print "Waiting for PIR to settle ..."

  # Loop until PIR output is 0
    while GPIO.input(GPIO_PIR)==1:
        Current_State  = 0

    print "  Ready"
  # Loop until users quits with CTRL-C
    while True :
    # Read PIR state
        Current_State = GPIO.input(GPIO_PIR)
        if Current_State==1 and Previous_State==0:

            # PIR is triggered
            print "  ALARM!"
            # Record previous state
        elif Current_State==0 and Previous_State==1:

        # PIR has returned to ready state
            print "  Ready"
        # Wait for 10 milliseconds
except KeyboardInterrupt:
    print "  Quit"
    # Reset GPIO settings

A (cute rather than scary) bat that descended from the porch, also activated by a Pi with a motion sensor and lowered by a stepper motor.

The Pimoroni BlackHAT Hackr and the Pi touch display made is really easy to set everything up on the windowseal so that just the wires from the picoborg board could be passed out through the window to the motor. A shaft adapter and some Lego made a nice winding mechanism.

A sinister Lego skull with Pi-controlled blinking eyes.

Why bother building some supports for the breadboards when you can just wedge the LEDs through the eye sockets. I don't know, kids today, eh?

Ozzy wrote the code for this and I thought the use of a simple random function to control the frequency of blinking was particularly effective and gave the impression of a lurking creature rather than just a thing with regular flashing eyes.

import RPi.GPIO as GPIO
import time
import random


def eyes_blinking(pin1,pin2):
    GPIO.output(pin1, GPIO.HIGH)
    GPIO.output(pin2, GPIO.HIGH)
    GPIO.output(pin1, GPIO.LOW)
    GPIO.output(pin2, GPIO.LOW)
counter = 0
while True:
    print ('boo ' + str(counter))

Monday 5 October 2015

Squeezing Raspbian Jessie on to a 4GB SD card

The promise of sudo-free access to GPIO was just too tempting so, despite the fact that I'd only created the whole club set of fresh SD cards before the start of term, I decided to re-create them with the fab new Jessie image.

The challenge: We have a bunch of original model Bs which are still perfectly good for a lot of the circuit based activities but they all have 4GB SD cards. I could just buy a bunch of 8GB ones, but that seemed like a waste.

But the new Jessie image clocks in at over 4.3GB. Here's how I made it fit. It might look a little daunting but its actually quite straight forward. the only tricky bit I found was keeping track of the cards at the various steps. There is probably an easier way of doing it, but this worked for me and only took an hour (with most of that time taken by waiting for the cards/partitions to copy).

What you'll need:
  • A 4GB SD card (call it card F) with a working (but un-needed) Wheezy installation (card M) , a blank 8GB SD card and one at least 16GB card with a working Raspbian installation (card S) or another Linux/Mac machine with enough free space to store GBs of images.
  • An SD card reader

1. Download the Jessie image. In some circumstances, because the unzipped file is >4GB, you may encounter difficulties extracting the compressed image. On a Mac, you'll need to use a tool like the Unarchiver. Store this .img on your Pi booted with the 16GB card (S) or your Mac/Linux box.

2. Insert card M into the reader and write the jessie image to it. Then remove card M from the reader.

3. Now take your 4GB card (F) and put that in your card reader (still attached to the Pi booted with card S or using your Linux/Mac) and display the current partition information of the 4GB card (F) and note it down.

sudo fdisk -l /dev/sda

Disk /dev/sda: 8068 MB, 8068792320 bytes
249 heads, 62 sectors/track, 1020 cylinders, total 15759360 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0xba2edfb9

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1            8192      122879       57344    c  W95 FAT32 (LBA)
/dev/sda2          122880     7710719     3793920   83  Linux

4. Now shutdown and boot with card M. Personalise as needed (e.g whether to boot to desktop, swap default background etc).

5. Now for the slimming down. Remove Wolfram/mathematica

sudo apt-get purge wolfram-engine

6. Remove LibreOffice

sudo apt-get purge libreoffice*
sudo apt-get purge libreoffice-base
sudo apt-get purge libreoffice-impress
sudo apt-get purge libreoffice-writer
sudo apt-get purge libreoffice-calc
sudo apt-get purge libreoffice-draw
sudo apt-get purge libreoffice-math
sudo apt-get clean
sudo apt-get autoremove

7.  Remove any empty icons from the top menu bar and the main drop-down menu. Reboot

8.  You should now find that your build uses less than 4GB.

df -h

Filesystem      Size  Used Avail Use% Mounted on
/dev/root       3.4G  2.4G  763M  77% /
devtmpfs        182M     0  182M   0% /dev
tmpfs           186M     0  186M   0% /dev/shm
tmpfs           186M  4.5M  182M   3% /run
tmpfs           5.0M  4.0K  5.0M   1% /run/lock
tmpfs           186M     0  186M   0% /sys/fs/cgroup
/dev/mmcblk0p1   56M   20M   37M  36% /boot
tmpfs            38M     0   38M   0% /run/user/109
tmpfs            38M     0   38M   0% /run/user/1000

Also, have a look at the partition table with

sudo fdisk -l /dev/mmcblk0

Disk /dev/mmcblk0: 7.4 GiB, 7892631552 bytes, 15415296 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0xba2edfb9

Device         Boot  Start     End Sectors Size Id Type
/dev/mmcblk0p1        8192  122879  114688  56M  c W95 FAT32 (LBA)
/dev/mmcblk0p2      122880 8447999 8325120   4G 83 Linux

You can see that the second partition is still too big to fit on the 4GB card, even though not all the space is being used.

9. Now Boot SD card S in your Pi and insert card M into the SD card reader (or use another Linux/Mac for this step).  These instructions assume that card M is now available as /dev/sda
Now we can shrink the 2nd disk partition:

sudo e2fsck -f /dev/sda2
sudo resize2fs /dev/sda2 3500M

10. Now we need to modify the partition table of card M to match.   Make sure you run fdisk against the correct disk! We need to edit the second partition, so run fdisk in interactive mode.

sudo fdisk /dev/sda

We can't simply resize it, we have to delete it and recreate it with a smaller size:

Press d to delete a partition, then 2 to select sda2.
Now add a new partition by pressing n, followed by p, then 2 (this creates a new, primary position, number 2)
It will ask you what sector you want this new partition to start at. Use the same starting value as we saw in step 2 (in this case, 122880), and give the end sector to match a normal 4GB layout - 7710719

Now press p to display the new layout and check that it matches the desired situation. When you're happy, press w to write the changes to the card.

11. Reboot with card M and check everything still works.

12. Now boot back into your big SD card (or other Linux/Mac box). Take a copy of the two individual partitions on SD card M using dd or dcfldd

dcfldd if=/dev/sda1 of=image4GB-p1.img
dcfldd if=/dev/sda2 of=image4GB-p2.img

13. Now swap the card in the reader (M) for card F (the 4GB one). Write these copied partitions  to your 4GB card.

dcfldd  if=image4GB-p1.img of=/dev/sda1
dcfldd  if=image4GB-p2.img of=/dev/sda2

14. Now boot from this card (M). It should be identical to the 8GB image.  If you want to make more 4GB installations of Jessie, just copy this entire card (no need to bother with individual partitions now we've got everything squeezed in).

Thursday 24 September 2015

Skycademy HAB payload testing with a kite

One of the big takeaways for me from Skycademy was the importance of testing each element of the flight. Its' easy to get things working at home or in the classroom, but you really need to head outdoors to put some of the kit (GPS, mobile Internet, payload assembly) through their paces.

A modified version of my kite-mapping project seemed like it might be a good way of ironing out the bugs and also provide a fun way for children to get involved even if they won't be able to come to the actual launch. When I tried it, it all worked really well. Here's my step-by-step.

What you'll need

A pack of small zinc plated screw hooks and eyes
A styrofoam box
Some strips of balsa wood
Duct tape
Adhesive backed velcro strips
Kite line (100 pound flying line)
3 x Medium size washers
2 x Carabiners (the diameter of the tubing should be able to fit through the hole in the washers)
A delta kite - anything with a 7 foot wingspan or above will have enough lift.
A long kite tail and two streamers for the wings.
Gardening gloves
Raspberry Pi (A+ is ideal)

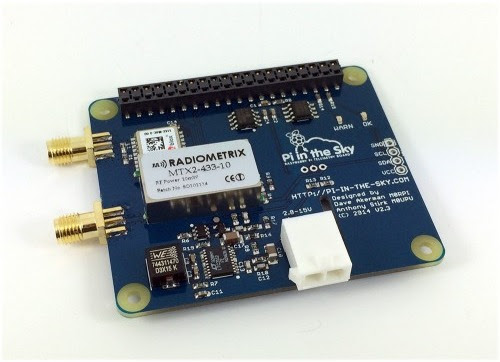

Pi-in-the-sky board
LORA board (optional)

For aerial photography, I like to use a picavet rigging to keep the payload as steady as possible. There are plenty of ways to make one of these - this is a good set of general instructions.
1. Construct your payload container. I can't see any reason why the container for a kite flight should be any different for that of a HAB launch.  A simple styrofoam box makes a good starting point.

2. Attach the picavet mount. I used 7mm think balsa wood to create a cross that extends just over the lid of the box.  I attached the wood to the styrofoam using a hot glue gun: apply a layer of glue to the wood and then press it onto the box lid (if you apply the glue directly to the styrofoam, it will melt).

3. Attach four of the eye screws, one at each end of the cross of balsa. They should just screw in by hand without any drilling.

4. Thread the picavet line. Use a washer at the centre and two at the top. Tie the kite line to one washer and then thread as shown below. Tie off the end of the line back at the first washer.

I then like to use a cable tie around the kite line under each washer.

Thread a narrow carabiner through the washers. You'll use these to attach the whole thing to the kite line.

4. Test radio comms. Check that your Pi-in-the-sky board can communicate with your radio receiver. Ditto for the LORA board.

5. Test HabHub uploading. Make sure you have Internet connectivity for whatever device is receiving your transmissions. Check that data is appearing on the map.

6. Choose a flight location.  You don't need a huge amount of space, but ideally you'll want a clear area  twice as wide and long as the height you intend the kit to reach. I normally have 200m of line so an ideal site will be free of obstructions (trees and roads etc) for circular area of 400m diameter.

7. Assess the wind. You need some wind for the kite to fly. A big delta kite doesn't need much to get aloft, but if you want it to stay up you need at least 8mph of constant breeze. Anything much above 15mph is probably too much and you'll have a real tough time reeling the kite in again when you've finished. I have two kites: a 7' and a 9' are both are easily capable of lifting a Pi payload. Obviously the bigger kite can lift heavier payloads, but the wider wingspan and overall larger canvas area (it's 4.5' tall)  can get pulled about too much in strong winds and be less stable than the smaller one.

8. Prepare your kite. Assemble the kite and attach the main tail and wing streamers.  These are vital to keeping the kite level and stable in the air. Most delta kites are a similar design: a fiberglass cross spreader is inserted and this keeps the wings rigid around the central spar.  Make sure that the outside spars  are pushed down to the bottom of the sail and that they're not bunched up with fabric or bent.

9.Test flight. Without the payload, get the kite up in the air. take it up to at least 20 or 30m and assess the conditions. Is the kite jerking around? If it's not too stable, try increasing the altitude. If you still find that it is dive-bombing or suddenly changing position with gusts, you might want to abort the test flight until the wind is more settled. Make sure you put your gloves on before winding the kite in. Kite line can give you really nasty deep cuts or friction burns.

10. Attach the picavet. Assuming you're happy with the conditions, bring the kite down to just a few metres and attach the picavet carabiners. This is where having someone to help is useful. One person holds the kite reel while the other attaches the payload. Clip one carabiner  over the line and then twist it so that you wrap the line around the tubing several times.  Then do the same with the second carabiner, making sure that their spacing on the line isn't too wide (ideally it should be just slightly wide than the separation of the mounting points of the line on the longest edge of the picavet.

If it's just too windy or your by yourself, then land the kite and sit on it while you attach the payload. This sounds like an easier approach but there is more chance of the line getting tangled in the tails/streamers or the payload being dragged along the ground when you eventually take the kite airborne again.

12. Fly. Let the line out steadily and keep on eye on the flight pattern as you get higher. Listen to the kite string. If it is really thrumming then beware of sudden jerks, especially if you're letting children hold the reel.  Make sure everyone who holds the reel or line wears gloves.

13. Wind the kite in.  This can take a long time! A kite being flown at 150m may take up to 30 minutes to wind in!

Thursday 17 September 2015

Installing Scratch-GPIO on PiNet

The default SD card image that comes with of PiNet is awesome and has just about everything you could need for using Pis in the classroom or with a club. The only thing that niggled me was that you couldn't have Scratch-GPIO installed directly. You could have a shortcut on the Desktop to make it easy to install once the SD card is booted, but that seemed like a bit of a hassle, especially if you're operating somewhere with flaky (or nonexistent) Internet access.

So I set aside some time to work out away of pre-installing it on the server default image so that each clone SD card could have it ready to use when booted.

Here is my method - there may be simpler or more elegant ways but this seems to work reliably. This works with ScratchGPIO V7 as of Sept 2015.

There are two parts to the installation. You'll need some modified files which can be found on my GitHub here.

1. So clone this repo onto your PiNet server.

git clone

2. Then copy in the modified installer script and run it. The modified version unpacks the files needed for ScratchGPIO into /tmp as normal, but does not install them.

cp ScratchGPIO-on-PiNet/  /opt/ltsp/armhf/

3. Now chroot in and run it:

sudo ltsp-chroot --arch armhf
sudo bash

4. Exit from the chrooted environment and copy in another file

cp ScratchGPIO-on-PiNet/  /opt/ltsp/armhf/tmp/selfextract.ZpdSK6/.

(note, your directory name will be similar but different. It should start with 'selfextract' but have a different bunch of characters at the end - use ls /opt/ltsp/armhf/tmp/ to find out what it is).

5. Next, pop back into the chrooted environment and change directory into the unpacked file archive directory.

sudo ltsp-chroot --arch armhf
cd /tmp/selfextract.ZpdSK6
sudo ./

This installs all the necessary files but doesn't try to add desktop shortcuts or the file.

6. Finally, don't forget to compress the Raspbian operating system:

ltsp-update-image /opt/ltsp/armhf

7. The second stage is to add those shortcuts and the file manually. Exit the chrooted environment and change directory to /etc/skel/Desktop.

cd /etc/skel/Desktop

Then make a couple of directories and copy in the files from the cloned Github repo:

sudo mkdir Documents
sudo mkdir Documents/"Scratch Projects"
sudo cp ~/ScratchGPIO-on-PiNet/  Documents/"Scratch Projects"/
sudo cp ~/ScratchGPIO-on-PiNet/ScratchGPIO7.desktop  Documents/"Scratch Projects"/
sudo cp ~/ScratchGPIO-on-PiNet/ScratchGPIO7Plus.desktop  Documents/"Scratch Projects"/

That should be it!

Thursday 3 September 2015

Raspberry Pi soars to new heights with Skycademy

This is Lego Space Marine Bob.


He may look like just another lego Minifig. You may even have one that looks just like him.

But Bob is rather special. He flew up to 28km above the Earth and made it back...

View from the onboard Pi camera from the Cirrus flight a styrofoam box with a Raspberry Pi.

This is the payload we sent to 28km

Although I've been back a week now, it has taken a while for just how awesome Skycademy was to sink in.

As soon as I saw it advertised, I literally dropped everything I was doing and typed up my application straight away. Launching a high altitude weather balloon with a Raspberry Pi payload and then chasing it when it returns from the stratosphere... that sounded like something I had to do. I was over the moon when I found out I'd managed to get a place and so a week ago last Sunday I headed up to Cambridge full of excitement and with a carefully selected Lego mini-figure (Bob) hoping to take a ride high above the Earth.

Day One.

First of all, let's be clear. Sending stuff up to the stratosphere is actually quite easy. Attach whatever you want to launch to a weather balloon filled with helium, let it go and... well that's it. Done.

Getting it back, that's a little harder. And that's where the Raspberry Pi comes in. So before we launched our own balloons, we got to learn about predicting and tracking trajectory from veteran of over 50 launches (and all-round HAB guru), Dave Akerman.

Dave Akerman telling us all about GPS

The tech to monitor the progress of your flight is deviously clever, but here's the simple version. The payload contains a Raspberry Pi with some additional hardware that lets it work out where it is (a GPS module) and transmit those coordinates back to Earth via radio.

PITS+ board

Of course, being able to see that your balloon's payload has ended up in the sea is very informative but ultimately doesn't make recovery any easier. The best plan is to work out when to launch the ballon so that the weather conditions (mainly wind) keep your flight and descent over accessible land. You can also tweak things  (the amount of gas with which you fill the balloon, the weight of the payload) to optimise the chances of recovery and there are some super-useful online tools to do the calculations for you.

We also covered the all-important permissions from the CAA that you need to obtain before making a flight. Being able to ask stupid questions about this whole process was invaluable and will probably save me hours of hassle and research.

I'd read about a lot of High Altitude Ballooning before coming on Skycademy but hearing about it from people who'd actually done it had the effect I'd been hoping for and really joined everything up in my head - and made it feel like an achievable goal. My own kite-mapping experiments have really been a poor man's version of HAB because I wasn't brave enough to attempt a balloon launch on my own!

Pi A+ plus LPRA board plus camera

Don't think that Skycademy was just sitting around listening to other people. Day one was full of hands-on activities; we split into 4 teams and constructed our payload containers; ensured the Raspberry Pi cameras had a clear view; assembled, configured and tested both our primary RTTY radio system and the backup LORA equipment and finally (and most importantly), decorated the container. Ours was quickly named the 'Dragon Toaster'.

Dragon Toaster

A lot of the hardware and software is still in active development so there was lots of tinkering and optimisation which was brilliant fun and really helped with understanding how everything fits and works together.

It's worth mentioning the weather at this stage. In the week before Skycademy we'd all been studying the forecast and hoping for good, calm weather to allow us to launch our balloons. The predictions just before the weekend were not at all promising, with strong wind, rain and lots of cloud promised for Tuesday. At one point it looked almost certain that even if we could safely get the balloons aloft, they'd end up in the ocean.

However, as the new week began, the forecast became less gloomy and by the end of Monday (which was a very unsettled day), we all left Pi Towers feeling cautiously optimistic that we'd at least attempt some launches early the next morning.

The uncertainty of the weather was itself a good learning point. the big thing I took away was that while you might like to make a definite plan to launch on a certain day, you really shouldn't bank on it.

Day Two

The forecast was for strengthening winds all day, with rain arriving mid-afternoon. So we had an early start (08:00 at Pi Towers) and then headed straight off to the launch site just west of Cambridge. As our merry convoy of vehicles scooted along the concrete track through the fields to our final location, we certainly drew some curious looks from the local dog-walkers.

Arriving at the launch site

The sun broke through the clouds and as we started unpacking our kits the temperature rose rapidly. Although it was quite gusty already, there was a line of tall trees which provided some good ground level shelter. Local knowledge of the launch site is clearly very useful.

As the teams carried out final assembly and testing, there was much to-ing and fro-ing back and forth to the cars. Like all reasonably complex tasks, there is definitely an optimal order in which to carry out the various component tasks. Having experienced HAB launchers present was a huge advantage and while many of pro-tips I picked up may seem obvious now, they only appear that way once you've spotted them.

It was also clear that working as a team of 6 was a big help. There were many instances where having a whole bunch of people who knew what they were doing meant that problems could be easily and swiftly corrected (like when we attached the payload to the parachute using the wrong ratio of line lengths). If these issues cropped up while you were attempting a solo launch and potentially demonstrating to, and looking after a group of children, it would be very easy to get flustered and make mistakes.

Finally everything was ready and Dave kicked things off with inflating his own hydrogen balloon and launching it. As it quickly sailed into the blue sky I was struck by how graceful and elegant the launch seemed. It was odd to think that this relatively leisurely ascent would continue until the balloon burst at in excess of 30km altitude.

Dave's balloon

Next it was our turn.   Filling the balloon with helium was actually very easy, although sealing off the neck with cable-ties and ensuring there were no sharp edges took a steady hand.

Windier than it looks

Both teams Cirrus and Nimbus were ready at the same time so decided to launch simultaneously.

Simultaneous launch

This almost turned into a disaster as despite being released several metres apart, the two balloons' paths converged and their payload lines nearly tangled around each other. Fortunately Nimbus gained altitude more rapidly and they had soon separated.

Watch out!

For a few minutes we stood around watching them disappear into the sky. Then we realised that we needed to get chasing and quickly packed up our gear and headed to the cars.  Two of our team were heading back to Pi Towers to monitor things from there while the remaining four of us went off in the car towards Norwich.

We immediately found that both the RTTY and LORA receivers were working and our balloon was reporting back its coordinates and other telemetry. I know we'd tested everything and discussed the technology in lots of detail the day before, but actually experiencing it working was very satisfying. The idea that we were tracking a balloon from a moving vehicle using Raspberry Pis as the core platform was amazing.

One thing we noticed straight away was that our ascent rate was lower than we'd intended. For the burst predictor calculations we'd been using a figure of 5m/s. Our balloon was only making 3.5m/s. When we plugged those numbers into the flight predictor, our final landing point was a couple of kilometres off the coast. Not good.

There was nothing we could do at this point, and it wasn't our only concern. Unlike all the other teams, our balloon was not showing up on the live tracking map. This didn't make any sense as we could clearly see the data in the car, and the first images from the Pi camera were starting to appear on the other HubHub sub-site. Our team-mates back at Pi Towers confirmed that there was a problem and started to investigate.

But where is team Cirrus?

Meanwhile, our balloon had started to climb more rapidly and our ascent rate was getting close to 5m/s at times.  It was still nerve-wracking - would the initial slow speed have already put an onshore landing out of the question?  The results from the predictor were very close.

Not looking good

However, looking at our actual flight path it seemed that the Cirrus balloon was travelling further south than the predicted one, so we gave up trying to refine the estimated landing point and just kept a close eye on the altitude.

As we approached the outskirts of Norwich it looked like the ballon was not going to make it North of the city so we headed South towards Gillingham instead. This turned out to be a good call.
Image from the onboard camera just before burst

At half past 12, the balloon reached 28000m... and burst. Cirrus' Dragon Toaster was heading back to Earth. But would it descend quickly enough to avoid a watery grave?  After the burst, we could see from the telemetry that the balloon was spiralling around as it plummeted rapidly. This was good! The less time it spent heading east, the better.  We'd pretty much caught up with the balloon by now and so decided to stop and enjoy a picnic at a nice scenic location while we waited to see where it would end up.


The packed lunch pudding was (of course) a Raspberry Pi. Yummy.

A Raspberry Pie

Despite the pleasant surroundings and tasty grub, we didn't hang around for long, because the balloon was descending quickly. We were heartened to see that although it was definitely heading east again, it seemed to occasionally pick up an onshore breeze and head west for short bursts. It passed almost directly over head (although we couldn't see it) and so we got back in the car to continue the chase. Not long after that, we lost the signal. The transmitters on the payload are very low power (mW) so our receivers will only get a decent signal when there is nothing in the way. Once the Pi is on the ground, the range is severely reduced.  We decided to head for the last reported coordinates, which were a sent when the balloon was a few tens of metres up.

Coordinates of last position before we lost contact

As we approached the area, the receiver started picking up packets again and we were able to get an updated location - the payload must have landed with the GPS antenna still able to see the sky. It looked like it had landed close to that final airborne transmission, but on the other side of the water. Phew. We pulled up in a lay-by (after asking some puzzled blackberry pickers if they'd seen a parachute) and headed into the field. We ran around like headless chickens for a few minuets before I realised I still had 3G signal on my tablet. I typed the precise coordinates now reported by the balloon into Google maps and we were able to go directly to the landing site.

Actual landing site

There it was. Mission success!

As it landed

Dragon Toaster recovered!


We realised that our balloon had had a very fortunate landing. We were so close to a row of  trees and a  number of watery areas and roads. Not to mention, on a larger scale, the sea!

Close to the sea

Elated, we packed things up and started the journey back to Pi Towers. Dave had warned us that the balloons were very smelly - like a condom factory - so we sealed that up in a plastic bag.

We waited until we were back together as a full team before cracking the payload container and recovering Bob. This meant we continued to transmit pictures from the boot  all the way back (and caused interference with the car's alarm).

Once back at Pi Towers we discovered why our balloon was not being displayed on the tracker page - a single character typo meant that its call-sign did not match the expected string and so packets were not being registered even though we were seeing them in the car. Oh well, something to remember to double-check for next time.

It was an incredibly successful day. Of the 5 Skycademy balloons launched, 4 were recovered. Unfortunately one seemed to have been under-filled with helium and never attained sufficient velocity to enable it reach burst altitude in time to descend before the land ran out.

All at sea

After some initial assessment of the recovered images taken by the payload cameras, we all retired to a local hostelry for some well-earned refreshments and sustenance.

Day Three

This was all about reflection and planning for future flights. The prime objective of Skycademy is to build a network of HAB launchers working with children across the country.

It's easy to see how HAB is a great activity for engaging kids in STEM subjects. There is a whole bunch of science involved that can easily be tailored to the age of the pupil; the physics of gases and pressure;  aerodynamics; radio wave propagation and antenna design; plus a whole load of mathematics around flight prediction. To get the whole school involved there are also plenty of non-STEM activities that can really engage the entire community through imagining and describing the flight through art and writing.

Skycademy attendees work with a range of different age groups from Primary to 6th form and nobody had problems coming up with ideas of how to integrate launching a balloon into their relevant areas of curriculum.

The Raspberry Pi Foundation has been incredibly generous and everyone who attended Skycademy has access to almost everything we'll need to launch at least one balloon in the next 12 months. Plus we all have the equipment to create a permanent tracking station so that we'll be able to monitor other HAB flights too.

Great views from up here

Of course organising your own flight sounds easy and possible when you're surrounded by supportive and like-minded enthusiasts at Pi Towers. How will that enthusiasm survive when we're all immersed back in our day jobs and all the challenges of a new term? The biggest obstacles I see are finding a suitable launch location (those of us the South East have a lot of airports to dodge) and the logistical difficulties of planning an event that is so weather dependent. School fairs and football matches can still go ahead if its wet and windy. HAB flights generally cannot!

Personally I'm confident that we will be able to maintain the momentum. In our final team presentations at the end of Skcademy, everyone appeared to have a good idea about how they'd take things forward. Those of us attending this year's PyCon already have a plan for a couple of launches there.


There is only one word for Skycademy: AwEsOmE. I can honestly say it was one of the most memorable experiences of my life. If I can have so much fun while learning so much, it seems like a no-brainer than any kids who get involved with HAB will be just as engaged and excited!
